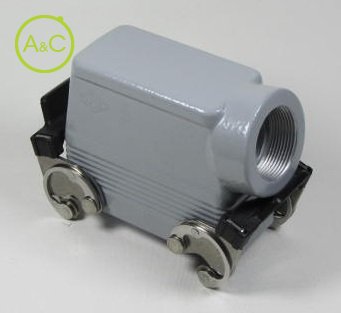

Hoods with 2 levers, high construction

Side entry
Aluminium, PG entry

CAO 10 X

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Entry

1xPG21
1xPG29

Article Number	CAO 10 X*
Protection Degree	IP66
Material Housing	Aluminium
Height	70 mm
Remark*	may be combined with enclosures: CHI 10 CS; CHI 10 CP; CHI 10 C; CHP 10 CS; CHP 10 CP; CHP 10 C; CAP 10 CS; CAP 10 CP; CAP 10 C; MHP 10 CS; MHP 10 CP; MAP 10 CS; MAP 10 CP
Length	73
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	59 mm

Article Number	CAO 10 X29*
Protection Degree	IP66
Material Housing	Aluminium
Height	70 mm
Remark*	may be combined with enclosures: CHI 10 CS; CHI 10 CP; CHI 10 C; CHP 10 CS; CHP 10 CP; CHP 10 C; CAP 10 CS; CAP 10 CP; CAP 10 C; MHP 10 CS; MHP 10 CP; MAP 10 CS; MAP 10 CP
Length	73
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	59 mm

Les propriétés diffèrent selon les variantes et sous-variantes

Accessoires

Covers with 4 pegs and gasket
