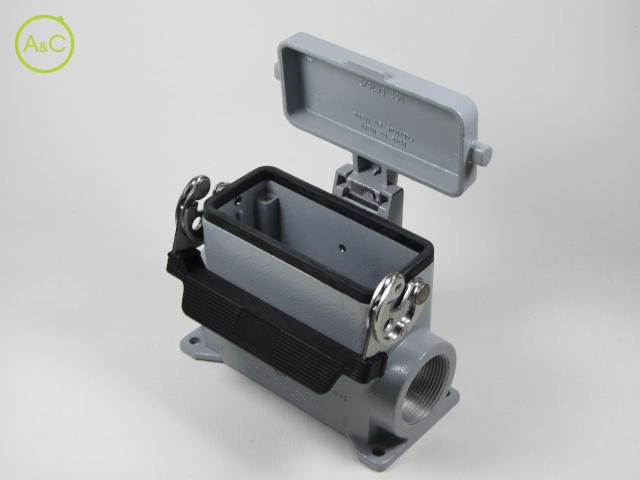

Surface mounting housings, high construction

  • With single lever and cover
  • Aluminium, PG entry
Télécharger la fiche produit

Entry

  • 1x21PG
  • 1x29PG
  • 2x21PG
  • 2x29PG
Article Number CAP 10 LS
Protection Degree IP65
Material Housing Aluminium
Height 74 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Les propriétés diffèrent selon les variantes et sous-variantes
