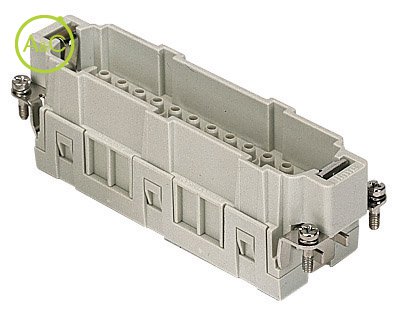

Inserts, 24P + PE, crimp connections

  • Male inserts for male contacts
Télécharger la fiche produit
  • General
Article Number CCEM 24
Pollution Degree 3
Number Of Poles 24
Connection Type Crimp connection
Contact Type Male
Required Crimp Contacts CCMA 0.3, CCMA 0.5, CCMA 0.7, CCMA 1.0, CCMA 1.5, CCMA 2.5, CCMA 3.0, CCMA 4.0, CCMD 0.3, CCMD 0.5, CCMD 0.7, CCMD 1.0, CCMD 1.5, CCMD 2.5, CCMD 3.0, CCMD 4.0, CC 0.5 AN, CC 0.7 AN, CC 1.0 AN, CC 1.5 AN, CC 2.5 AN, CCMC 0.3, CCMC 0.5, CCMF 0.3, CCMF 0.5, CCM2D 0.3, CCM2D 0.5, CCM2D 0.7, CCM2D 1.0, CCM2D 1.5, CCM2D 2.5, CCM2D 3.0, CCM2D 4.0, CCMJD 0.3, CCMJD 0.5, CCMJD 0.7, CCMJD 1.0, CCMJD 1.5, CCMJD 2.5, CCMJD 3.0, CCMJD 4.0
Extra Information Contact insert without contacts
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Required Housing C-type size 104.27
C7 size 104.27
Simplex size 104.27
V-type size 104.27
BIG size 104.27
T-type size 104.27
T-type/W size 104.27
T-type/H size 104.27
T-type/C size 104.27
W-type size 104.27
EMC size 104.27
Central Lever size 104.27
High protection IP68
LS-type size 104.27
COB size 104.27
Diameter Male Contact 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 16 A
Nominal Rated Voltage 500 V
Over Voltage Category III
Rated Surge Voltage 6 kV
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CR VNTG
Screws for second earth terminal
CRBM
Coupling screws
CR 24 SC
Ground terminals for shielded cables and for several earth connections clams
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
CR CPQ*
Plain coding pin for CDC, CQ,CQE,CCE,CMCE and MIXO 16A inserts
