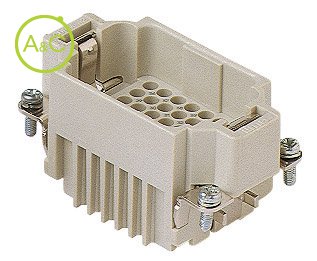

Inserts, 42P + PE, crimp connections

  • Male inserts for male contacts
Télécharger la fiche produit
  • General
Article Number CDDM 42
Pollution Degree 3
Number Of Poles 42
Connection Type Crimp connection
Contact Type Male
Required Crimp Contacts CDMA 0.3, CDMA 0.5, CDMA 0.7, CDMA 1.0, CDMA 1.5, CDMA 2.5, CDMD 0.3, CDMD 0.5, CDMD 0.7, CDMD 1.0, CDMD 1.5, CDMD 2.5, CDM2D 0.3, CDM2D 0.5, CDM2D 0.7, CDM2D 1.0, CDM2D 1.5, CDM2D 2.5, CDMJD 0.3, CDMJD 0.5, CDMJD 0.7, CDMJD 1.0, CDMJD 1.5, CDMJD 2.5
Extra Information Contact insert without contacts
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Required Housing C-type size 57.27
C7 size 57.27
Simplex size 57.27
V-Type size 57.27
BIG size 57.27
T-type size 57.27
T-type/W size 57.27
T-type/H size 57.27
T-type/C size 57.27
W-Type size 57.27
EMC size 57.27
Central Lever size 57.27
high protection IP68
LS-type size 57.27
COB size 57.27
Diameter Male Contact 1.6 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 10 A
Nominal Rated Voltage 250 V
Over Voltage Category III
Rated Surge Voltage 4 kV
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CR VNTG
Screws for second earth terminal
CIF 2.4
Interface for printed circuit with 6 female contacts (gold)
CIF 2.4 A
Interface for printed circuit with 6 female contacts (silver)
CDMA 6A
6A male contacts for male inserts with terminal Ø 1mm
CDMD 6A
6A male contacts for male inserts with terminal Ø 1mm
CR 10 SC*,**
Ground terminals for shielded cables and for several earth connections clams
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
CR CP*
Plain coding pin for CD and CDD inserts
