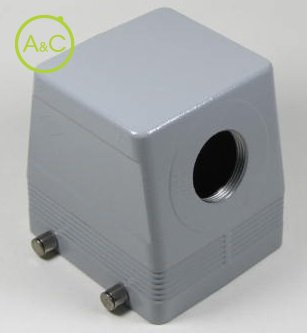

Hoods with 4 pegs

  • Side entry, without adaptor
  • Aluminium, PG entry
Télécharger la fiche produit

Entry

  • 1xPG29
  • 1xPG36
  • 1xPG42
Article Number CFO 32.29*
Protection Degree IP66
Material Housing Aluminium
Height 94 mm
Remark* Enclosure without adaptor, threaded on the body, to be used only with a complete cable gland
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 82.5 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CHC 32 G
Covers with 2 levers
