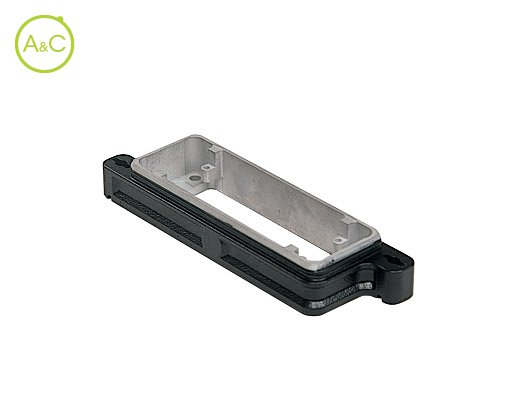

Bulkhead mounting housings, Bayonet locking

  • Aluminium
Télécharger la fiche produit
  • General
Article Number CGI 06 B
Protection Degree IP68
Material Housing Aluminium
Height 29 mm
Length 133
Extra Information Corrosion resistant
UV resistant
With interlocking device
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Bayonet
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 58 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CGC 06 B
Cover for bayonet locking
CG 06 FL
Frame for bulkhead mounting housings
CYG 06H06
1 branch-off T-Box coupling
CYG 06H06D
1 branch-off T-Box coupling
CYG 06H0610
2 branch-off T-Box coupling
CYG 06H1006
2 branch-off T-Box coupling
CYG 06H0606
2 branch-off T-Box coupling
