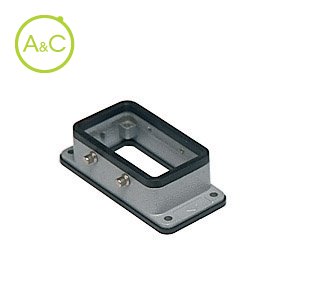

Bulkhead mounting housings

  • With 4 pegs
  • Aluminium
Télécharger la fiche produit
  • General
Article Number CHI 10 C*
Protection Degree IP66
Material Housing Aluminium
Height 29 mm
Remark* May be combined with enclosures: CHO 10 X; CAO 10 X; CHV 10 X; CAV 10 X; MHO 10 X; MAO 10 X; MHV 10 X; MAV 10 X
Length 95.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CT-CTSE 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 45.5 mm
Les propriétés diffèrent selon les variantes et sous-variantes
