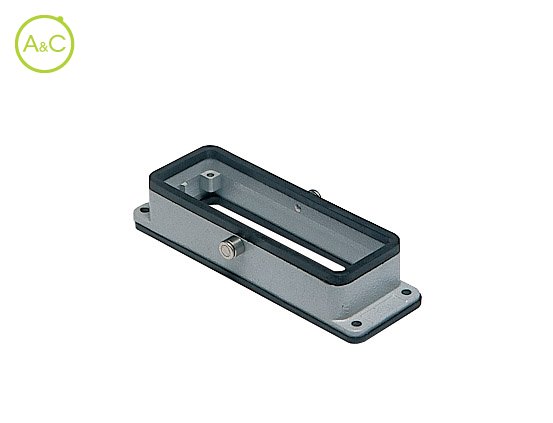

Bulkhead mounting housings with pegs

  • For central lever
  • Aluminium
Télécharger la fiche produit
  • General
Article Number CHI 10 YC
Protection Degree IP65
Material Housing Aluminium
Height 29 mm
Length 95.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CT-CTSE 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Central clamp
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 45.5 mm
Les propriétés diffèrent selon les variantes et sous-variantes
