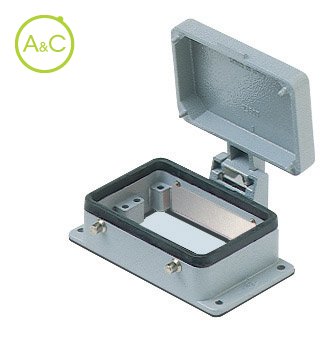

Bulkhead mounting housings

  • With 4 pegs and cover
  • Aluminium
Télécharger la fiche produit
  • General
Article Number CHI 50 CS*
Protection Degree IP66
Material Housing Aluminium
Height 29 mm
Remark* May be combined with enclosures: CHO 50 X;cao 50 X;CAV 50 X; MHO 50 X;MAO 50 X;MFO 50 X;MAV 50 X;MFV 50 X
Length 104
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 58.5 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CHC 50 G
Covers with 2 levers
