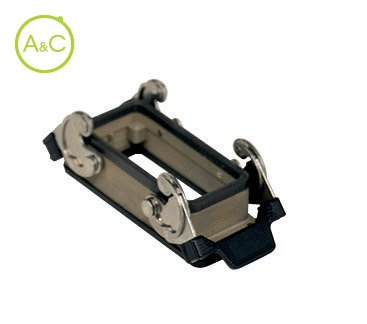

Bulkhead mounting housings, For electromagnetic compatibility

  • With levers
  • Aluminium
Télécharger la fiche produit
  • General
Article Number CHIS 16
Protection Degree IP66
Material Housing Aluminium
Height 29 mm
Length 115.5
Extra Information Corrosion resistant
EMC Version
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CT-CTS 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CT-CTSE 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 59 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CHCS 16
Cover for electromagnetic compatibility with 4 pegs
CYG 16
Enclosures for in-line joints IP65
