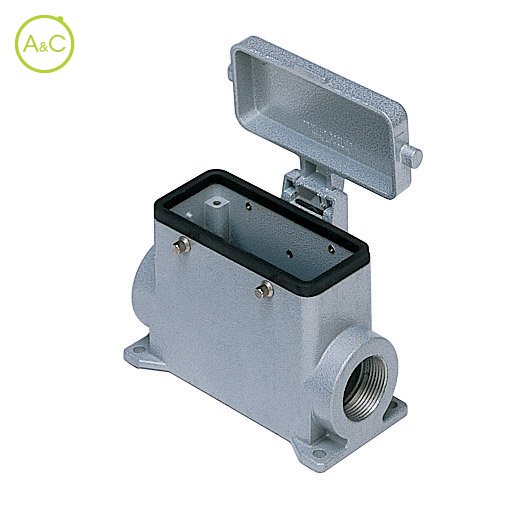

Surface mounting housings

  • With 4 pegs and aluminium cover
  • Aluminium, PG entry
Télécharger la fiche produit

Entry

  • 1xPG21
  • 2xPG21
Article Number CHP 16 CS*
Protection Degree IP65
Material Housing Aluminium
Height 63 mm
Remark* May be combined with enclosures: CHO 16 X; CAO 16 X; CHV 16 X; CAV 16 X; MHO 16 X; MAO 16 X; MHV 16 X; MAV 16 X
Length 117
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Les propriétés diffèrent selon les variantes et sous-variantes
