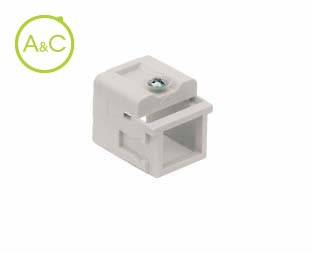

Adaptor for RJ45 female connector in fixed enclosures

  • Insert, 10P
Télécharger la fiche produit
  • General
Article Number CJ KF*
Number Of Poles 10
Connection Type Crimp connection
Contact Type Female
Remark* Can only be used in I/IAP enclosures
Extra Information Contact insert without contacts
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 120 °C
Min. Cross Section Without End Sleeve 0.34 mm²
Max. Cross Section Without End Sleeve 0.38 mm²
Required Housing High protection IP68 size 21.21
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 2.1 A
Nominal Rated Voltage 50 V
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CX 8/2 JF
RJ 45 female connector with 8 data contacts
CX 8 JF
RJ45 female connector with 8 data contacts & 2 power contacts
CX 4/2 JF
RJ 45 female connector with 4 data contacts
CX 4 JF
RJ45 female connector with 4 data contacts & 2 power contacts
CJST
Cable stripper, cuts the cable steath and releases the wires in a single operation
CJPZ Y
RJ45 CJ series plug insert crimp pliers
