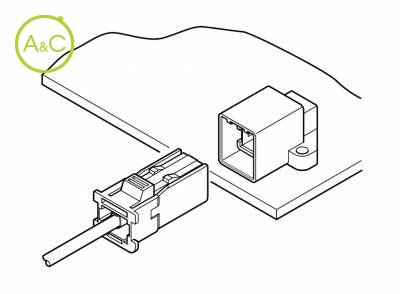

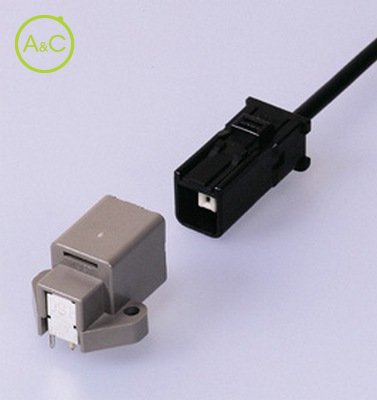

Plug Housing For Socket Contact

  • CN CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 1
Article Number CNP-01V
Number Of Contacts 1
Upper Temperature +105 °C
Lower Temperature -30 °C
General Description Crimp Style Coaxial (Wire to Board)
Connection Type Printed Circuit Board Connectors
Pitch / Style Coaxial mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes
Connector for the GPS antenna system of the car navigation system. The CN connector applies the unique crimping method to the shielding meshed wires, which will result in superior high-frequency characteristics. Shielding meshed wires are crimped with the N-type crimp shape, which prevents the deflection and coming off of the meshed wires. Cost effective. Cost effective Less expensive than the conventional high-frequency connectors. Crimping method and shape Shielding meshed wires are crimped with the N-type crimp shape, which prevents the deflection and coming off of the meshed wires. Superb high-frequency characteristics This connector can keep low VSWR characteristics, while serving high-frequency characteristics. RoHS Compliant
