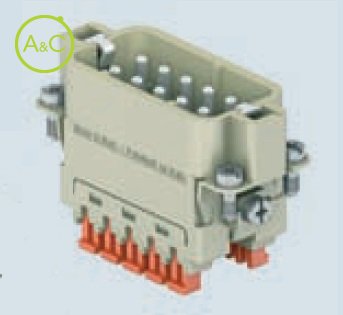

Inserts, 10P + PE, Spring terminal connections, With actuator button

  • Male inserts with male contacts
  • Silver plated contacts
Télécharger la fiche produit
  • General
Article Number CSAHM 10
Pollution Degree 3
Number Of Poles 10
Connection Type Screw connection
Contact Type Male
Colour White
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Min. Cross Section With End Sleeve 0.14 mm²
Max. Cross Section With End Sleeve 1.5 mm²
Min. Cross Section Without End Sleeve 0.14 mm²
Max. Cross Section Without End Sleeve 2.5 mm²
Required Housing IL-BRID size 49.16
W-type size 49.16
EMC size 49.16
COB size 49.16
Diameter Male Contact 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 16 A
Nominal Rated Voltage 250 V
Over Voltage Category III
Rated Surge Voltage 4 kV
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
