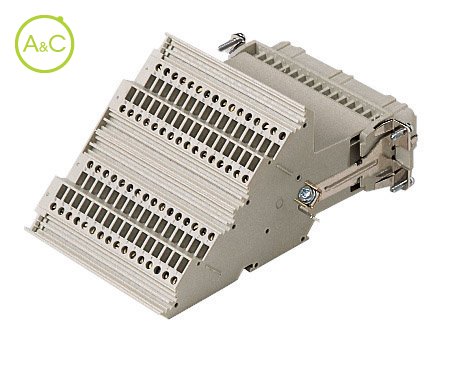

Terminal block inserts, 64P + PE, Screw terminal connection

  • Female inserts with female contacts
  • Silver plated contacts, for non-prepared conductors
Télécharger la fiche produit

Side Mounting

  • Left
  • Right
Article Number CTF 64 L*
Pollution Degree 3
Number Of Poles 64
Connection Type Screw connection
Contact Type Female
Remark* Only for bulkhead mounted housings
Extra Information With protective conductor
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Min. Cross Section With End Sleeve 0.75 mm²
Max. Cross Section With End Sleeve 2.5 mm²
Required Housing C-type size 104.27
C7 size 104.27
Simplex size 104.27
V-type size 104.27
W-type size 104.27
EMC size 104.27
Central Lever size 104.27
LS-type size 104.27
Diameter Male Contact 1.6 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Material Contact Brass
Plating Of Contact Silver
Max. Rated Current 10 A
Nominal Rated Voltage 250 V
Over Voltage Category III
Rated Surge Voltage 4 kV
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CT APE
Support for rail mounting DIN EN 60715
CRBF
Coupling screws
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
