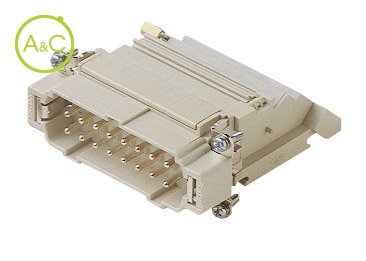

Terminal block inserts, 32P + PE, Spring terminal connection

  • Male inserts with male contacts
  • Silver plated contacts, for non-prepared conductors
Télécharger la fiche produit

Side Mounting

  • Left
  • Right
Article Number CTSEM 16 LN* CTSEM 16 L*
Pollution Degree 3 3
Number Of Poles 32 32
Connection Type Spring clamp connection Spring clamp connection
Contact Type Female Female
Remark* Only for bulkhead mounted housings and BIG hoods Only for bulkhead mounted housings and BIG hoods
Extra Information Modular version
With protective conductor
With wire protection
Modular version
With protective conductor
With wire protection
Ambient Lower Temperature -40 °C -40 °C
Ambient Upper Temperature 125 °C 125 °C
Pin Numbers 1-16 1-16
Min. Cross Section Without End Sleeve 0.75 mm² 0.75 mm²
Max. Cross Section Without End Sleeve 2.5 mm² 2.5 mm²
Required Housing C-type size 77.62
W-type size 77.62
C-type size 77.62
W-type size 77.62
Diameter Male Contact 2.5 mm 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0 V0
Material Insert Thermoplastic Thermoplastic
Material Contact Brass Brass
Plating Of Contact Silver Silver
Max. Rated Current 16 A 16 A
Nominal Rated Voltage 500 V 500 V
Over Voltage Category III III
Rated Surge Voltage 6 kV 6 kV
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CT APE
Support for rail mounting DIN EN 60715
CRBF
Coupling screws
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
