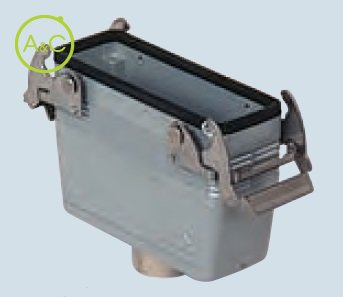

Hoods, top entry, high construction

  • With gasket, with 2 levers in stainless steel
  • Aluminium, PG entry
Télécharger la fiche produit

Entry

  • 1xPG21
  • 1xPG29
Article Number CVAV 10 G21
Protection Degree IP67
Material Housing Aluminium
Height 91 mm
Length 122
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 57 mm
Les propriétés diffèrent selon les variantes et sous-variantes
