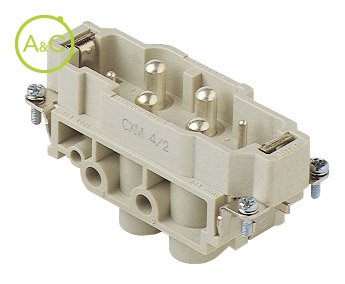

Inserts, 4+2P + PE, Screw terminal connection

  • Male inserts with male contacts
  • Silver plated contacts
Télécharger la fiche produit
  • General
Article Number CXM 4/2
Pollution Degree 3
Number Of Poles 4+2
Connection Type Screw connection
Contact Type Male
Extra Information With protective conductor
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Min. Cross Section With End Sleeve 4P: 4 mm² 2P: 0.25 mm²
Max. Cross Section With End Sleeve 4P: 16 mm² 2P: 2.5 mm²
Required Housing C-type size 77.27
C7 size 77.27
Simplex size 77.27
V-type size 77.27
BIG size 77.27
T-type size 77.27
T-type/W size 77.27
T-type/H size 77.27
T-type/C size 77.27
W-type size 77.27
EMC size 77.27
Central Lever size 77.27
High protection IP68
LS-type size 77.27
COB size 77.27
Diameter Male Contact 4 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Material Contact Brass
Plating Of Contact Silver
Max. Rated Current 4P: 80 A 2P: 16 A
Nominal Rated Voltage 4P: 690 V 2P: 400 V
Over Voltage Category IV
Rated Surge Voltage 4P: 8 kV 2P: 6 kV
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CR VPTG
Screws for second earth terminal
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
