Plug for FCT Connector

  • FCT CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 26
  • 34
  • 40
  • 60
Article Number FCTP-26V-S
Number Of Contacts 26
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.0mm Pitch Disconnectable Connector for Flat Cables
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Remark* Secure locking device
Les propriétés diffèrent selon les variantes et sous-variantes

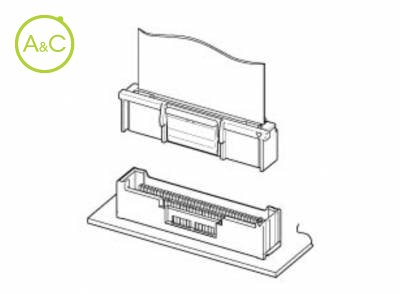

This connector realizes high cost performance, to be designed with the new connector concept that the conductors of flat cable that was fixed up in the plug housing are directly touched to the base contacts. Countermeasure to short circuit by whisker High reliability design by both side contact Low insertion force With secure locking device RoHS Compliant
