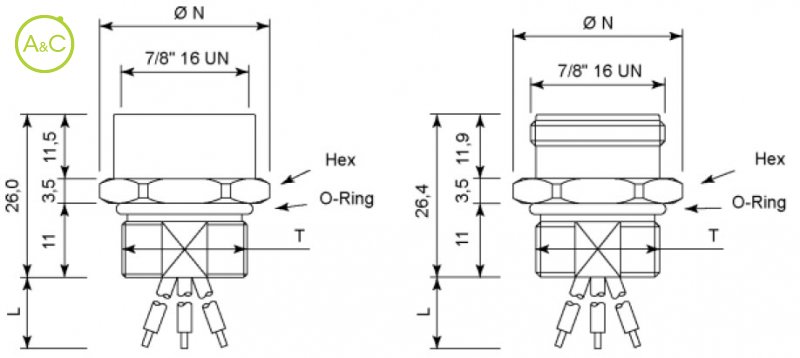

Female power receptacle

HDE - HDEF 00201

HDE - HDEF 00201

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

2
3
4
5
6
14

Article Number	HDEF 00201 6A7 0200 000	HDEH 00201 6A7 0200 000
Number Of Contacts	2	2
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	12 A @40°C	12 A @40°C
Contact Gender	F	F
Thread Gender	F	M
Ground Pole	No	No
Max. Number Wires	2	2
Wire Colour	bn1, bu2	bn1, bu2
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDEF 00309 6A7 0200 000	HDEH 00309 6A7 0200 000	HDEF 00339 6A7 0200 000	HDEH 00339 6A7 0200 000
Number Of Contacts	3	3	3	3
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	12 A @40°C	12 A @40°C	12 A @40°C	12 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	3	3	3	3
Wire Colour	bn2, bu3, bk1	bn2, bu3, bk1	bn2, bu3, gn/ye1	bn2, bu3, gn/ye1
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDEF 00407 6A7 0200 000	HDEH 00407 6A7 0200 000	HDEF 00437 6A7 0200 000	HDEH 00437 6A7 0200 000
Number Of Contacts	4	4	4	4
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C	9 A @40°C	9 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	4	4	4	4
Wire Colour	bn3, wh4, bu2, bk1	bn3, wh4, bu2, bk2	bn3, bu2, bk1, gn/ye4	bn3, bu2, bk1, gn/ye4
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDEF 00508 6A7 0200 000	HDEH 00508 6A7 0200 000	HDEF 00538 6A7 0200 000	HDEH 00538 6A7 0200 000
Number Of Contacts	5	5	5	5
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C	9 A @40°C	9 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	5	5	5	5
Wire Colour	bn4, wh5, bu2, bk1, gy3	bn4, wh5, bu2, bk1, gy3	bn4, wh5, bu2, bk1, gn/ye3	bn4, wh5, bu2, bk1, gn/ye3
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDEF 006A0 5A7 0200 000	HDEH 006A0 5A7 0200 000	HDEF 00683 6A7 0200 000	HDEH 00683 6A7 0200 000
Number Of Contacts	6	6	6	6
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II	II	II
Voltage Vdc	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***	1 to 600***	1 to 600***
Max. Currrent	9 A @40°C	9 A @40°C	9 A @40°C	9 A @40°C
Contact Gender	F	F	F	F
Thread Gender	F	M	F	M
Ground Pole	No	No	Yes	Yes
Max. Number Wires	6	6	6	6
Wire Colour	din 47100 #A0	din 47100 #A0	n1-1, n2-2, gn/ye3, n3-4, n4-5, n5-6	n1-1, n2-2, gn/ye3, n3-4, n4-5, n5-6
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Article Number	HDEF 014C2 4H3 0200 000	HDEH 014C2 4H3 0200 000
Number Of Contacts	14	14
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Overvoltage Category	II	II
Voltage Vdc	1 to 600***	1 to 600***
Voltage Vac	1 to 600***	1 to 600***
Max. Currrent	4(Signal) 9(Common) A @40°C	4(Signal) 9(Common) A @40°C
Contact Gender	F	F
Thread Gender	F	M
Ground Pole	No	No
Max. Number Wires	14	14
Wire Colour	din 47100 #C2	din 47100 #C2
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark ***	With polution degree 3, the maximum voltage is 300 Vac	With polution degree 3, the maximum voltage is 300 Vac

Les propriétés diffèrent selon les variantes et sous-variantes
