Header SMT Reverse
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 68
| Article Number | ICM-MB68H-S153-400R |
| Number Of Contacts | 68 |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| General Description | Small PC Card Connector MB Type (1.0mm Pitch) |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 0.5 A |
| Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Les propriétés diffèrent selon les variantes et sous-variantes

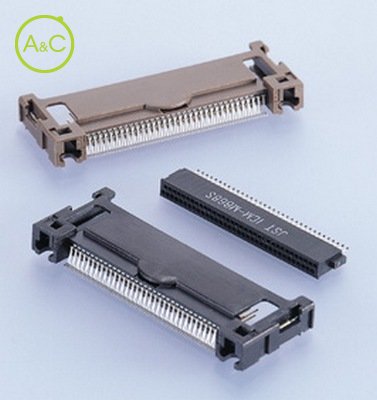

1.0mm (.039") pitch 68-circuit dual-row connector for small PC card, conforming to PCMCIA/JEIDA standard.

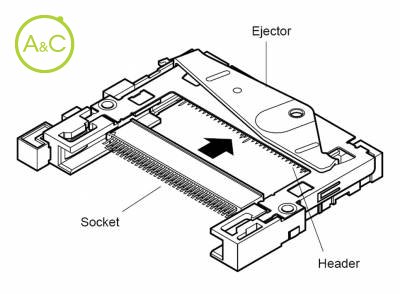

Socket
Socket is of straddle-type, designed to accommodate PC board between the two solder tail rows.
Header
Header is with stand-off 0mm, available in both normal and reverse types.
Ejector
Ejector is, with the left button, to be assembled (with SCrews) after header is mounted. The frame has the contact point for the grounding clip on the small PC card.
RoHS Compliant
