IDC connectors with double-contacting

With dimple grounding

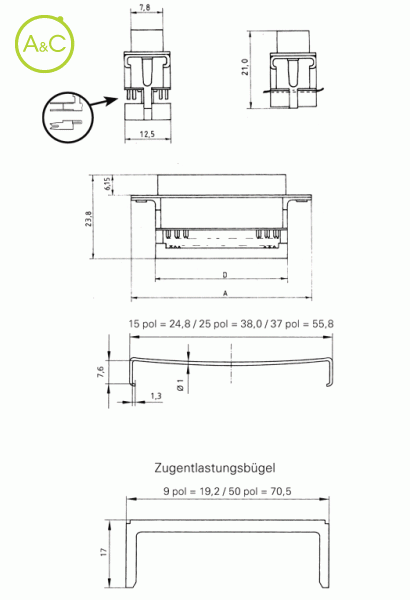

IKFT 09 154 G 075

IKFT 09 154 G 075

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

9
15
25
37
50

Article Number	IKFT 09 154 G 075
Number Of Contacts	9
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Extra Information	UL approval useful for difficult contacting in the cutting/fixing area
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Male
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC
Usable Cable	AWG 26-30, lize Cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Article Number	IKFT 15 154 G 075
Number Of Contacts	15
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Extra Information	UL approval useful for difficult contacting in the cutting/fixing area
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Male
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC
Usable Cable	AWG 26-30, lize Cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Article Number	IKFT 25 154 G 075
Number Of Contacts	25
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Extra Information	UL approval useful for difficult contacting in the cutting/fixing area
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Male
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC
Usable Cable	AWG 26-30, lize Cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Article Number	IKFT 37 154 G 075
Number Of Contacts	37
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Extra Information	UL approval useful for difficult contacting in the cutting/fixing area
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Male
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC
Usable Cable	AWG 26-30, lize Cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Article Number	IKFT 50 154 G 075
Number Of Contacts	50
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Extra Information	UL approval useful for difficult contacting in the cutting/fixing area
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Male
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC
Usable Cable	AWG 26-30, lize Cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Les propriétés diffèrent selon les variantes et sous-variantes
