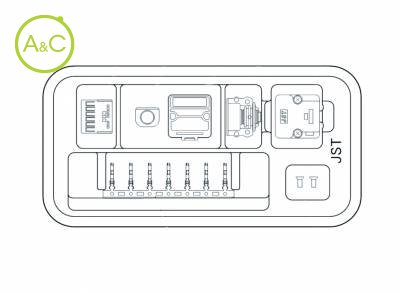

Connector Kit for JFA Connector J1700 series

  • JFA CONNECTOR J1700 series
Télécharger la fiche produit

Cable Diameter

  • 6.0
  • 6.0
  • 7.0
Article Number J17-06FMH-6KL-1M-CF
Number Of Contacts 6
Upper Temperature +105 °C
Lower Temperature -55 °C
General Description 2.0mm Pitch Connector Kit for Motor
Connection Type Factory Automation Connectors
Pitch / Style 2.00 mm
Rated Current (ac/dc) 5 A
Rated Voltage (ac/dc) 250 V
Remark* Waterproof
Extra Information Nominal: M
Les propriétés diffèrent selon les variantes et sous-variantes
6 Circuit connector for power supply of servomotor. This connector is supplied in kits, including all components. Waterproof grade: Grade 5 ingress protection of JIS C 0920 (IEC 60529 IPX5) Standards UL Recognized E60389 RoHS Compliant
