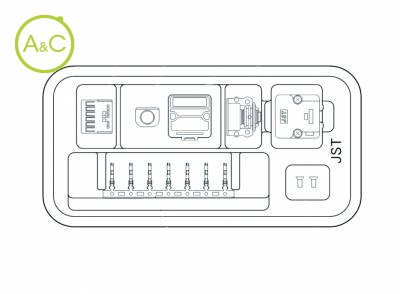

Connector Kit for JFA Connector J3700 series

  • JFA CONNECTOR J3700 Series
Télécharger la fiche produit

Cable Diameter

  • 8.0
  • 9.0
Article Number J37-06FMH-8KL-1L-CF J37-06FMH-8KL-1M-CF J37-06FMH-8KL-1S-CF
Number Of Contacts 6 6 6
Upper Temperature +105 °C +105 °C +105 °C
Lower Temperature -55 °C -55 °C -55 °C
General Description 3.8mm Pitch Connector Kit for Motor 3.8mm Pitch Connector Kit for Motor 3.8mm Pitch Connector Kit for Motor
Connection Type Factory Automation Connectors Factory Automation Connectors Factory Automation Connectors
Pitch / Style 3.8 mm 3.8 mm 3.8 mm
Rated Current (ac/dc) 10 A 10 A 10 A
Rated Voltage (ac/dc) 250 V 250 V 250 V
Remark* Waterproof Waterproof Waterproof
Extra Information Nominal: L Nominal: M Nominal: S
Les propriétés diffèrent selon les variantes et sous-variantes
6 Circuit connector for power supply of servomotor. This connector is supplied in kits, including all components. Waterproof grade: Grade 5 ingress protection of JIS C 0920 (IEC 60529 IPX5) Standards UL Recognized E60389 RoHS Compliant
