Side Entry Shrouded Header THT

  • LC CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 4
Article Number LC-04A LC-04B
Number Of Contacts 4 4
Upper Temperature +90 °C +90 °C
Lower Temperature -25 °C -25 °C
General Description 5.08mm Pitch Disconnectable Crimp Style 5.08mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 5.08 mm 5.08 mm
Rated Current (ac/dc) 7.0 A 7.0 A
Rated Voltage (ac/dc) 250 V 250 V
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Remark* Shape A Shape B
Les propriétés diffèrent selon les variantes et sous-variantes

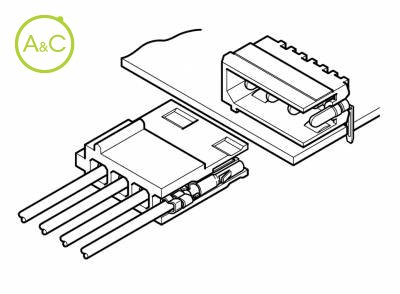

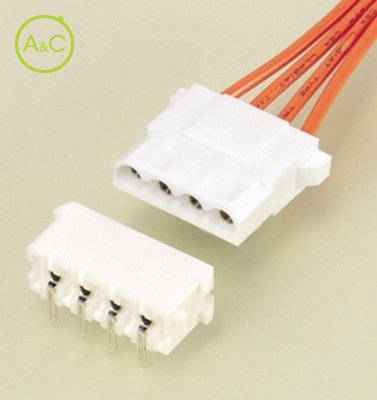

This reliable, low cost connector is suited for bringing power to printed circuit boards in office automation equipment. A major application has been in secondary power supply circuits of floppy disk drives. Anti-misinsertion feature The plug and header are polarized, thus preventing misinsertion of the connector. Self-locking housing clamp The self-locking housing clamp for the header ensures easy handling and sturdy mounting. Two kinds of headers Types A and B headers are available to match the mounting direction of your printed circuit boards. Two-wire crimp style contact Two-wire crimp contacts which facilitate branch connections and internal jumpering are available. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
