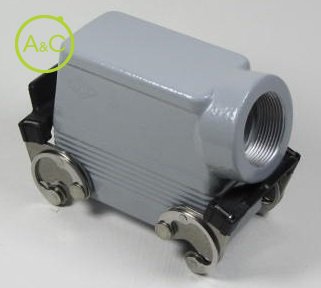

Hoods with 2 levers, high construction

  • Side entry
  • Aluminium, Metric entry
Télécharger la fiche produit

Entry

  • 1xM32
  • 1xM40
Article Number MAO 10 X32*
Protection Degree IP66
Material Housing Aluminium
Height 70 mm
Remark* may be combined with enclosures: CHI 10 CS; CHI 10 CP; CHI 10 C; CHP 10 CS; CHP 10 CP; CHP 10 C; CAP 10 CS; CAP 10 CP; CAP 10 C; MHP 10 CS; MHP 10 CP; MAP 10 CS; MAP 10 CP
Length 73
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 59 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CHC 10 C*
Covers with 4 pegs and gasket
