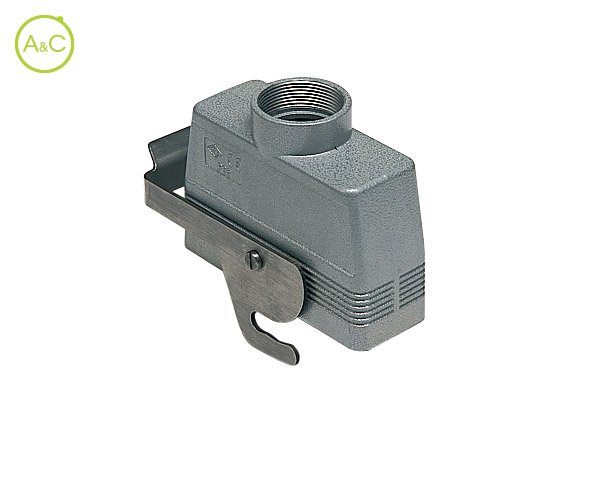

Hoods with central lever, high construction

  • Top entry
  • Aluminium, Metric entry
Télécharger la fiche produit

Entry

  • 1xM32
  • 1xM40
Article Number MAV 24 YX32
Protection Degree IP65
Material Housing Aluminium
Height 91 mm
Length 120
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux) + PE; CMSH 10+2 (aux) + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Central clamp
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 43 mm
Les propriétés diffèrent selon les variantes et sous-variantes
