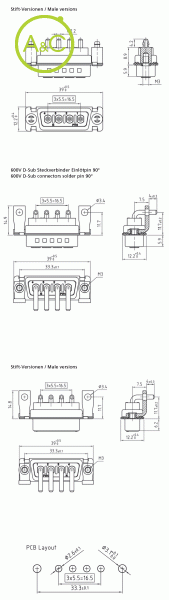

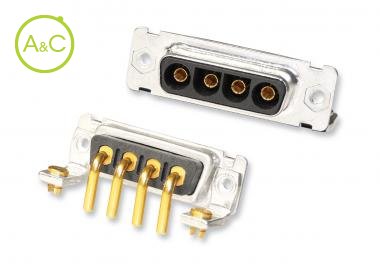

600V D-Sub connectors solder pin 90°
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Provertha
Provertha
Threaded Rivet
- M3
- UNC 4-40
| Article Number | MDT4W4P62G2R48 | MT4W4S62G2R48 |
| Number Of Contacts | 4 | 4 |
| Mating Cycles | Turned contacts: 200 (class 2) Stamped contacts: 20 times | Turned contacts: 200 (class 2) Stamped contacts: 20 times |
| Upper Temperature | +125 °C | +125 °C |
| Lower Temperature | -55 °C | -55 °C |
| Pollution Degree | 1 | 1 |
| Contact Plating | Turned contacts: Au over Ni barrier Stamped contacts: tin plated | Turned contacts: Au over Ni barrier Stamped contacts: tin plated |
| Operating Voltage | 630 | 630 |
| Contact Material | Cu alloy | Cu alloy |
| Over Voltage Category | I: 2,5 kV II: 4 kV acc. To EC 60 664 | I: 2,5 kV II: 4 kV acc. To EC 60 664 |
| Current Rating | Turned contacts: 20A Stamped contacts: 16 | Turned contacts: 20A Stamped contacts: 16 |
| Gender | Male | Female |
| Insulator Material | PA GF UL 94-V0 | PA GF UL 94-V0 |
| Retaining Clip Material | CuBE alloy | CuBE alloy |
| Creepage/clearance | ≥ 1,8 mm /3,2 | ≥ 1,8 mm /3,2 |
| Awg Range | AWG 20-12 | AWG 20-12 |
| Awg Size | Turned contacts: AWG 20-16 & AWG AWG 16-12 Stamped contacts: AWG 20-16 | Turned contacts: AWG 20-16 & AWG AWG 16-12 Stamped contacts: AWG 20-16 |
| Termination Type | PCB 90° | PCB 90° |
Les propriétés diffèrent selon les variantes et sous-variantes
