Female Connector for MFP Connector

  • MFP CONNECTOR
Télécharger la fiche produit
  • General
Article Number MFP-128SK-1402MB ©
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.65mm Pitch Socket for Flash Package
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.65 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

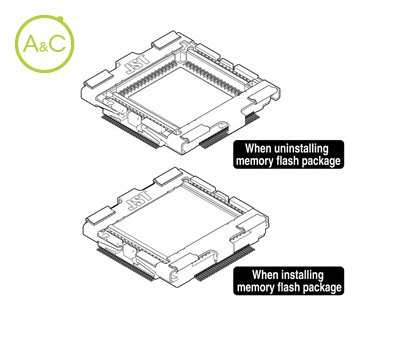

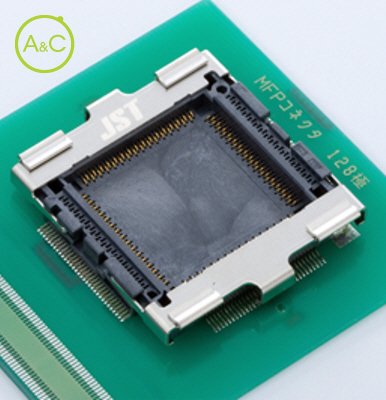

This connector is an IC socket corresponding to the flash package for memory of picture in game machine. High reliability of connection Adopting the holding mechanism by the metal slider Use of an exclusive jig for mounting and dismounting (injustice prevention) Structure of preventing miss-mounted connector on PC board and miss-installed memory flash package into the connector Product with dust cover is provided as standard product RoHS Compliant
