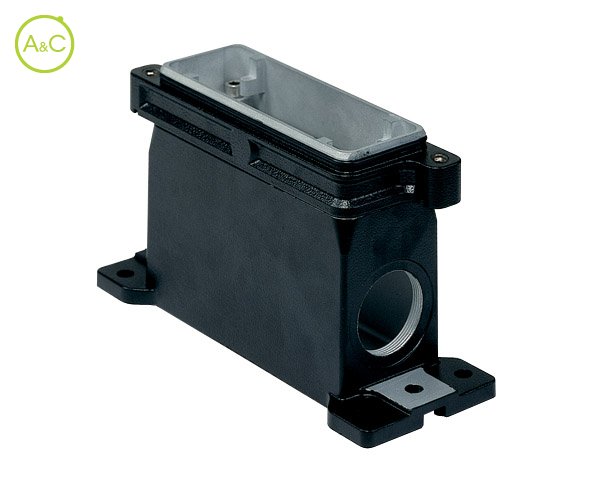

Surface mounting housings, screw locking

  • Aluminium
  • Metric entry
Télécharger la fiche produit

Entry

  • 1xM40
  • 2xM40
Article Number MGP 24.240
Protection Degree IP68
Material Housing Aluminium
Height 121 mm
Length 216
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux) + PE; CMSH 10+2 (aux) + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Screw
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Two-sided
Width 58 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CGC 24
Covers for screw locking
