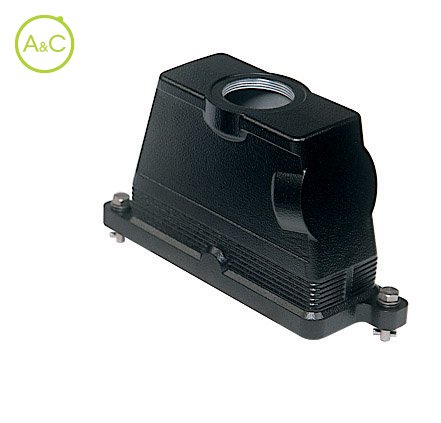

Hoods with top entry, Bayonet locking

  • Aluminium
  • Metric entry
Télécharger la fiche produit

Entry

  • 1xM32
  • 1xM40
  • 1xM50
  • 2xM32
  • 2xM40
  • 3xM25
Article Number MGV 24.232 B
Protection Degree IP68
Material Housing Aluminium
Height 111 mm
Length 193
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux) + PE; CMSH 10+2 (aux) + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Bayonet
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Two-sided
Width 58 mm
Les propriétés diffèrent selon les variantes et sous-variantes
