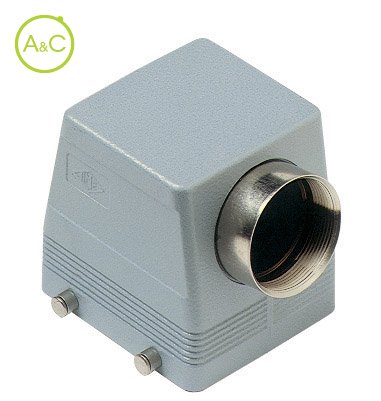

Hoods with 4 pegs

  • Side entry
  • Aluminium, Metric entry
Télécharger la fiche produit

Entry

  • 1xM32
  • 1xM40
  • 1xM50
Article Number MHO 32.32
Protection Degree IP66
Material Housing Aluminium
Height 94 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 82.5 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CHC 32 G
Covers with 2 levers
