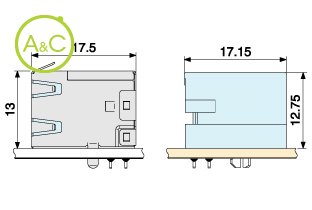

Female Connector for MJ-8P Connector

  • MJ-8P CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Number Of Poles

  • 8
Article Number MJ-88H-RD315K MJ-88R-RD315K MJ-88U-SD315K-T
Number Of Contacts 8 8 8
Upper Temperature +80 °C +80 °C +80 °C
Lower Temperature -40 °C -40 °C -40 °C
General Description Modular Jack Connectors (RJ45) Modular Jack Connectors (RJ45) Modular Jack Connectors (RJ45)
Connection Type Interface Connection Connectors Interface Connection Connectors Interface Connection Connectors
Rated Current (ac/dc) 1.3 A 1.3 A 1.3 A
Rated Voltage (ac/dc) 250 V 250 V 250 V
Standard RJ45 RJ45 RJ45
Remark* Normal type (with shielding) Normal type (with plastick hook) Straight type (with shielding)
Les propriétés diffèrent selon les variantes et sous-variantes
Upper contact point The MJ connector has an upper contact point design. With this construction, the contact points are free from dust even before the connector is mated with the modular plug. Metal hook The MJ connector has metal hooks, which provides click feeling when mounted on a PC board, and are soldered later. With these hooks, the connector can be securely mounted on the board, resistant against the external forces applied by the wires of the plug. *Low profile type 8 circuits MJ connector with plastic hooks is also available. Shielding effect By covering the whole connector, it provides a high quality shielding effect. Grounding By soldering the Shield Cover (the spring part), it provides secure grounding through the Hook to the PC board. Standards UL Recognized E174260 CSA Certified LR20812 Conforms to FCC Standards RoHS Compliant
