Produits

Revenir à la liste des produits

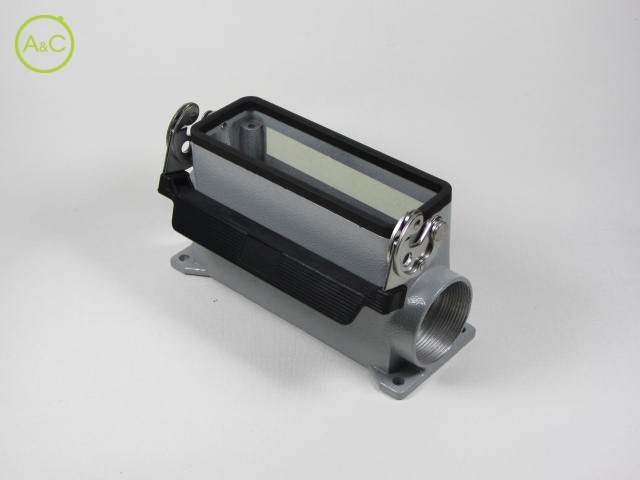

Surface mounting housings with single lever, high construction

Aluminium
Metric entry

MMAP 03 L32

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Entry

1xM32
1xM40
2xM32
2xM40

Article Number	MMAP 03 L32
Protection Degree	IP66
Material Housing	Aluminium
Height	74 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 3+2P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	MMAP 03 L40
Protection Degree	IP66
Material Housing	Aluminium
Height	74 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 3+2P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	MMAP 03 L232
Protection Degree	IP66
Material Housing	Aluminium
Height	74 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 3+2P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Article Number	MMAP 03 L240
Protection Degree	IP66
Material Housing	Aluminium
Height	74 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 3+2P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Les propriétés diffèrent selon les variantes et sous-variantes

Accessoires

Covers with 2 pegs
