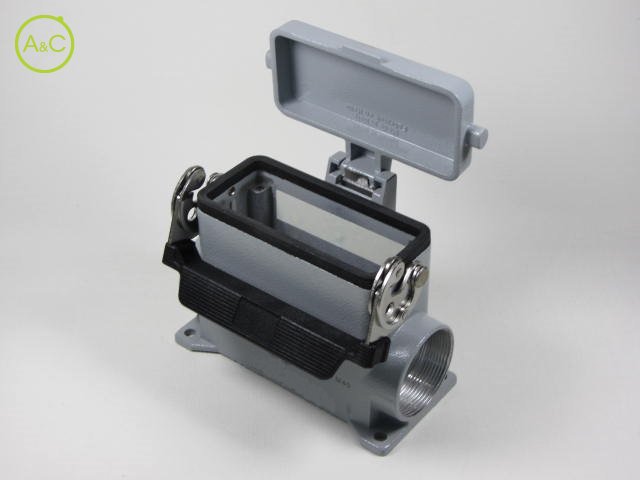

Surface mounting housings with single lever and cover, high construction

  • Aluminium
  • Metric entry
Télécharger la fiche produit

Entry

  • 1xM32
  • 1xM40
  • 2xM32
  • 2xM40
Article Number MMAP 03 LS32
Protection Degree IP65
Material Housing Aluminium
Height 74 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CME 3+2P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Les propriétés diffèrent selon les variantes et sous-variantes
