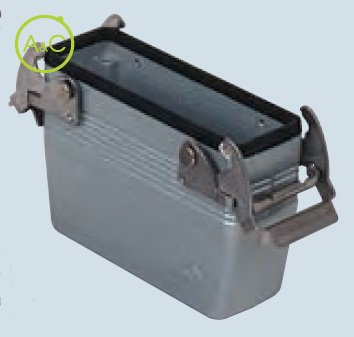

Hoods top entry, high construction, without adaptor

  • With gasket and 2 levers in stainless steel
  • Aluminium, Metric entry
Télécharger la fiche produit

Entry

  • 1xM25
  • 1xM32
Article Number MVFV 16 G25
Protection Degree IP67
Material Housing Aluminium
Height 81 mm
Length 142.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism Double locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 57 mm
Les propriétés diffèrent selon les variantes et sous-variantes
