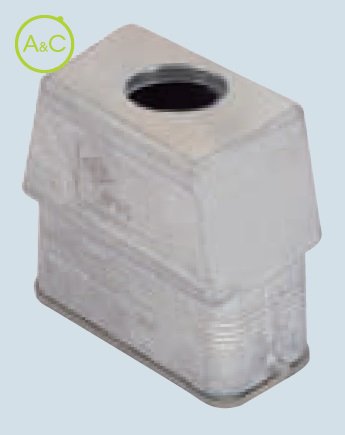

Hoods for electromagnetic compatibility with pegs

  • Top entry, without adaptor
  • Aluminium, 1xM25
Télécharger la fiche produit
  • General
Article Number MZFVS 25 L25*
Protection Degree IP66
Material Housing Aluminium
Height 70.5 mm
Remark* Enclosure without adaptor, threaded on the body, to be used only with a complete cable gland
Length 79.5
Extra Information Corrosion resistant
EMC Version
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 25 P; CDD 38 P + PE; CSAH 16 P + PE; CDA 16 P + PE; CDC 16 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 36 mm
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CZCS 25 LG
Cover for electromagnetic compatibility with lever
