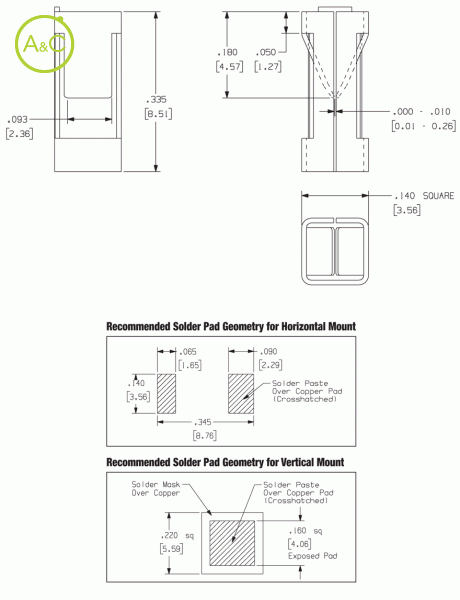

SMT Top or Bottom Entry Box Receptacles

17 amperes

receptacles-1262

receptacles-1262

receptacles-1262

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Plus d’infos sur cette marque:

Packaging

Loose
Small reeled
Taped
reeled

Article Number	1262	1262-19
Extra Description	17 amperes	17 amperes
Mating Terminal Size	0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade	0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade
Material Thickness / Type	0.010" (0.25mm) C51000 Phosphor Bronze	0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish	100% Tin over Copper	100% Tin over Copper
Current Rating Ul	17 Amperes	17 Amperes
Current Rating C-ul	17 Amperes	17 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder Standard 24mm Tape Feeder for PN 1262T and PN 1262TH	Surf-Shooter SMT ™ Continuous Strip Feeder Standard 24mm Tape Feeder for PN 1262T and PN 1262TH
Ul File Number	E361770	E361770
Pieces Per Reel (loose Part No.)	NA	NA
Pieces Per Reel (reeled Part No.)	/	/
Pieces Per Reel (taped Part No.)	/	/
Pieces Per Reel (small Reel Part No.)	/	/
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	1262T-SR
Extra Description	17 amperes
Mating Terminal Size	0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade
Material Thickness / Type	0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish	100% Tin over Copper
Current Rating Ul	17 Amperes
Current Rating C-ul	17 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder Standard 24mm Tape Feeder for PN 1262T and PN 1262TH
Ul File Number	E361770
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (reeled Part No.)	/
Pieces Per Reel (taped Part No.)	/
Pieces Per Reel (small Reel Part No.)	100
Fiche produit	Télécharger la fiche produit

Article Number	1262T	1262TH	1262T-KT
Extra Description	17 amperes	17 amperes	17 amperes
Mating Terminal Size	0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade	0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade	0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade
Material Thickness / Type	0.010" (0.25mm) C51000 Phosphor Bronze	0.010" (0.25mm) C51000 Phosphor Bronze	0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish	100% Tin over Copper	100% Tin over Copper	100% Tin over Copper
Current Rating Ul	17 Amperes	17 Amperes	17 Amperes
Current Rating C-ul	17 Amperes	17 Amperes	17 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder Standard 24mm Tape Feeder for PN 1262T and PN 1262TH	Surf-Shooter SMT ™ Continuous Strip Feeder Standard 24mm Tape Feeder for PN 1262T and PN 1262TH	Surf-Shooter SMT ™ Continuous Strip Feeder Standard 24mm Tape Feeder for PN 1262T and PN 1262TH
Ul File Number	E361770	E361770	E361770
Pieces Per Reel (loose Part No.)	/	/	/
Pieces Per Reel (reeled Part No.)	/	/	/
Pieces Per Reel (taped Part No.)	/	630	630
Pieces Per Reel (small Reel Part No.)	/	/	/
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	6262
Extra Description	17 amperes
Mating Terminal Size	0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade
Material Thickness / Type	0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish	100% Tin over Copper
Current Rating Ul	17 Amperes
Current Rating C-ul	17 Amperes
Feeder System	Surf-Shooter SMT ™ Continuous Strip Feeder Standard 24mm Tape Feeder for PN 1262T and PN 1262TH
Ul File Number	E361770
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (reeled Part No.)	5000
Pieces Per Reel (taped Part No.)	/
Pieces Per Reel (small Reel Part No.)	/
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
