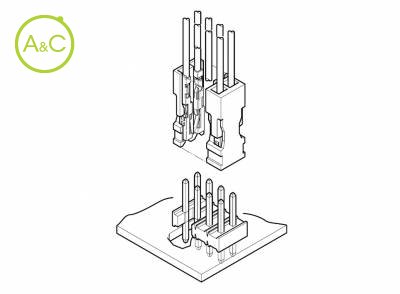

Side Entry Header THT

  • RF CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 62
  • 82
  • 102
  • 122
  • 142
  • 162
  • 202
  • 282
Article Number RF-H062SD-1110 RF-H062SD-1190
Number Of Contacts 62 62
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 2.54mm Pitch Disconnectable Crimp Style 2.54mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 2.54 mm 2.54 mm
Rated Current (ac/dc) 2 A 2 A
Rated Voltage (ac/dc) 250 V 250 V
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Remark* Gold plated Tin plated
Les propriétés diffèrent selon les variantes et sous-variantes

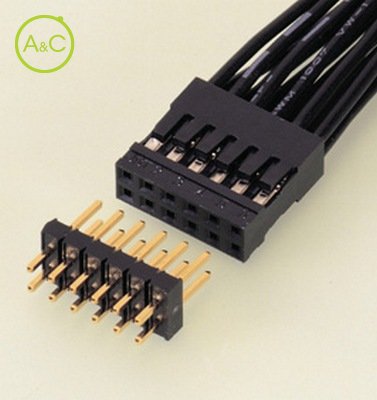

Well suited for completing the internal connections of office automation equipment, such as personal computers, office computers, and their peripheral devices. Double-leaf spring contact withstands the stresses caused by repeated mating and unmating. The contacts and headers are selectively gold-plated. Double-row construction. Housing lances. Notches are provided on the insulator that allow it to be cut to any length without using special tools. Highly reliable, yet low in cost Our original double-leaf spring construction withstands the stresses caused by repeated insertions and withdrawals and ensures reliable contact performance. Depending on the application, the socket contacts and header posts can be selectively gold-plated or fully tin-plated to minimize costs. A space-saving, high-density design The 2.54mm (.100") pitch contacts are arranged in two rows. The mated connectors can be placed side by side or end to end without a loss in pitch. This facilitates space-saving, high density circuit designs. Easy connection A slight force is all that is required for contact insertion because the housing has resilient lances. Furthermore, the positions of the contacts in the housing can be visually checked. This facilitates insertion of the contacts in the housing. It can be cut to any length to provide a header with any number of circuits Notches are provided on the insulator that allow it to be cut to any length without using special tools. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
Accessoires
PK-RF-1
Polarizing key
