Top Entry Header THT

  • V CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
Article Number RTB-1.5-2P
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 5mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 5.00 mm
Rated Current (ac/dc) 5 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

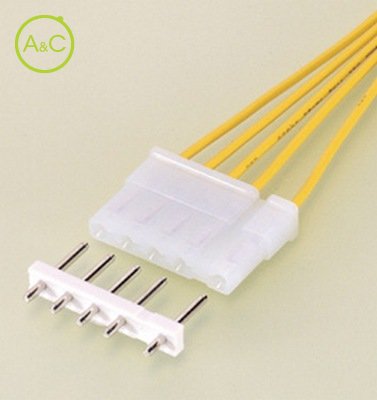

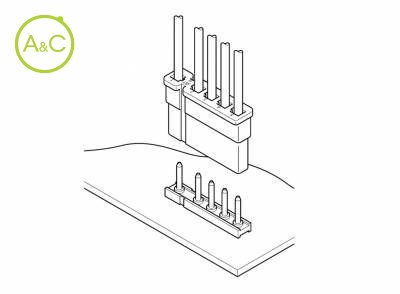

The V connector can have from two to six circuits. A single contact position is provided 7.5mm (.295") away from the adjacent position, while the pitch of the other positions is 5.0mm (.197"). This prevents reverse connection of the receptacle and header. Anti-misinsertion construction One position has a different pitch than the others. This provides the connector with polarization and prevents misinsertion. Two-point contact Each contact has two wiping areas which ensure stable and reliable connection. Standards UL Recognized E60389 CSA Certified LR20812 TUV Recognized R75171 RoHS Compliant
