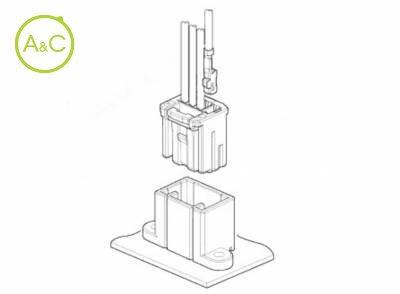

Male Connector Side Entry for HCM Connector

  • HCM CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 3
  • 4
Article Number S03B1-HCMKS S04B1A-HCMKS
Color Black Black
Number Of Contacts 3 3
Upper Temperature +100 °C +100 °C
Lower Temperature -40 °C -40 °C
General Description 2.54mm Pitch Disconnectable Crimp Style (Wire to Board) 2.54mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type Automotive Automotive
Pitch / Style 2.54 mm 2.54 mm
Rated Current (ac/dc) 5 C, DC (0.5mm2, Single Circuit) A 5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc) 14 V 14 V
Les propriétés diffèrent selon les variantes et sous-variantes
Developed to exceed and comply with USCAR (United States Council for Automotive Research) specifications. The HCM connector has now been added to JST's general automotive connector range. Designed with automotive safety requirements in mind, this 2.54mm pitch wire-to-wire and wire-to-board connector system incorporates a secondary lock feature that not only ensures correct connector assembly, but also facilitates connector strength and durability. In general, this connector has been developed to be very small and universal and is more than suitable for automotive applications such as; Display, ECU, Relay and other small electrical units. Low profile, miniaturization in the direction of mating Using the short length female terminal, low profile in the direction of mating is realized. Variations We have an abundant variation of PC board lock mechanism, lock type, wire-to-wire type and so on, according to your needs. Reliability and achievement Ensuring the reliabilities of an indispensable characteristic and mechanism etc, to the connector for automobile, this product has several adoption results proven in automotive electrical equipment miniaturized rapidly. Standard USCAR RoHS Compliant
