Pin Contact AWG 22

  • DCJ CONNECTOR LARGE CURRENT TYPE
Télécharger la fiche produit

Applicable Wire

  • AWG 22
Article Number SDCJ-21A-3.0
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description Jack Connector
Applicable Wire Size 0.33 (AWG #22) mm²
Connection Type Wire to Wire Connectors
Pitch / Style Single-Circuit mm
Rated Current (ac/dc) 6 A
Rated Voltage (ac/dc) 16 V
Les propriétés diffèrent selon les variantes et sous-variantes

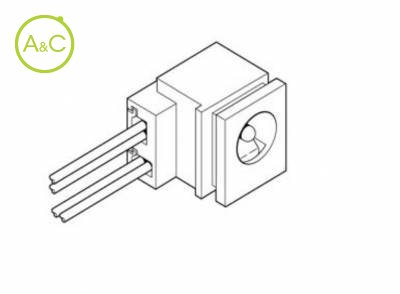

This is a jack connector for DC power supply used for handheld devices and notebook PC. 'Harness type with crimping' is adopted to prevent from defectives of conventional product such as 'Solder crack' of PC board mounting types due to an excessive external force when mating and unmating operations, and 'Poor soldering' of harness types with solder potting. High safety is realized. Good workability when assembling connector Easy setting to an equipment panel For large current RoHS Compliant
