Contact AWG 30 to 22

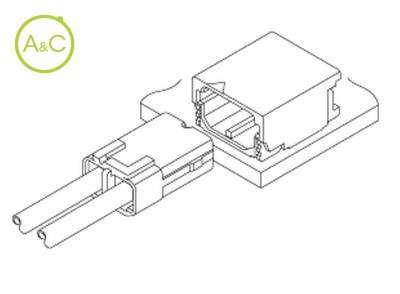

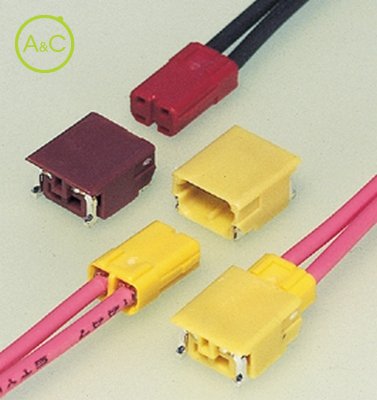

  • SFH CONNECTOR
Télécharger la fiche produit

Applicable Wire

  • AWG 26 to 22
  • AWG 30 to 26
Article Number SSFH-001T-P0.5
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.8mm Disconnectable Crimp Style
Applicable Wire Size 0.13 to 0.33 (AWG #26 to #22) mm²
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.80 mm
Rated Current (ac/dc) 4 A
Rated Voltage (ac/dc) 350 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes
This low profile connector with height of 3.0mm (.118") is designed for connection to stroboSCope flash and realized space saving. Contact lance Contact lance with the spring feature is adopted as the method for fixing the contact to the housing. Countermeasure for inverse insertion and locking feature The guide for preventing insertion is provided at bottom of inside housing. Housing lock is also added in order to prevent from slipping off due to vibration or mechanical shock. Standards UL Recognized E60389 RoHS Compliant
