Female Terminal AWG 22 to 20

  • HCH CONNECTOR
Télécharger la fiche produit

Applicable Wire

  • AWG 22 to 20
Article Number SHCM-A03T-P025
Upper Temperature +120 °C
Lower Temperature -40 °C
General Description 2.54mm Pitch Disconnectable Crimp Style
Applicable Wire Size 0.3 to 0.5 (AWG #22 to #20) mm²
Connection Type Automotive
Pitch / Style 2.54 mm
Rated Current (ac/dc) 5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

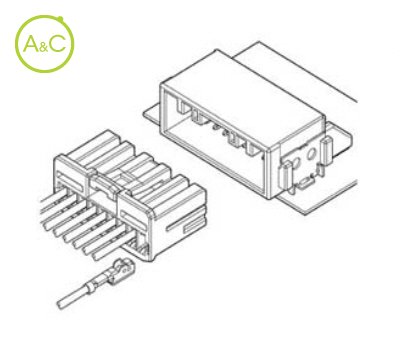

2.54mm pitch, 0.64 unsealed connector for automotive corresponding to the surface mounting. Miniturization Using the short length terminal, the miniaturization is realized. Surface mounting Corresponding to the surface mounting (lead-free), mounting workability is improved. Reliability High reliability ensured by using proven female terminal in the automotive electrical equipment. RoHS Compliant
