Terminal for SIN CONNECTOR AWG 30 to 12

  • SIN CONNECTOR
Télécharger la fiche produit

Applicable Wire

  • AWG 12
  • AWG 14
  • AWG 18 to 16
  • AWG 22 to 18
  • AWG 24 to 20
  • AWG 26 to 20
  • AWG 28 to 26
  • AWG 30 to 24
  • AWG 30 to 26
Article Number SIN-001T-1.2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description Single-Circuit Board-in Crimp Style Terminal
Applicable Wire Size 0.05 to 0.15 (AWG #30 to #26) mm²
Connection Type Printed Circuit Board Connectors
Pitch / Style Single-Circuit mm
Rated Current (ac/dc) Depends on pplicble wires A
Pcb Mount Style Through-hole Technology (THT)
Remark* Shape B
Les propriétés diffèrent selon les variantes et sous-variantes

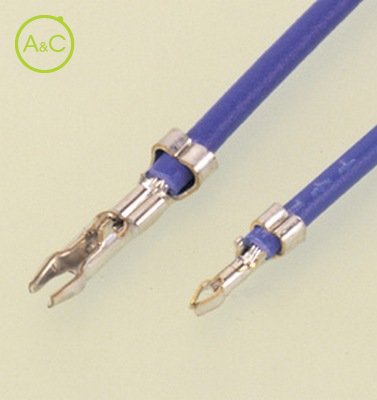

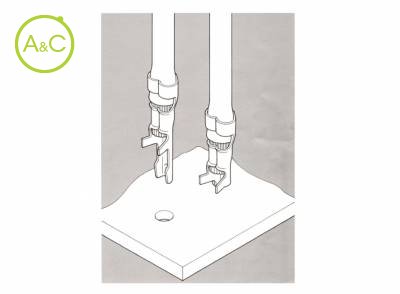

It is time consuming to directly solder the many wires that are required on densely packed printed circuit boards. The SIN terminal is crimped to a wire, inserted into a hole in a printed circuit board, then soldered. Solderability is enhanced because solder does not enter the wire, thus ensuring a safe and secure connection. This terminal is ideal for permanent connection of jumper wires onto a printed circuit board or for connection to external circuits. Compliant board retention feature insures secure mounting before and during soldering. Wires can be machine secured to terminals. Strain relief minimizes wires Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
