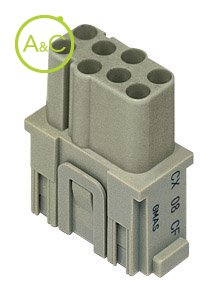

Modular units 8P, crimp connections

  • Female inserts for female contacts
Télécharger la fiche produit
  • General
Article Number CX 08 CF
Pollution Degree 3
Number Of Poles 8
Connection Type Crimp connection
Contact Type Female
Required Crimp Contacts CCFA 0.3, CCFA 0.5, CCFA 0.7, CCFA 1.0, CCFA 1.5, CCFA 2.5, CCFA 3.0, CCFA 4.0, CCFD 0.3, CCFD 0.5, CCFD 0.7, CCFD 1.0, CCFD 1.5, CCFD 2.5, CCFD 3.0, CCFD 4.0, CCFC 0.3, CCFC 0.5, CCFF 0.3, CCFF 0.5, CCF2D 0.3, CCF2D 0.5, CCF2D 0.7, CCF2D 1.0, CCF2D 1.5, CCF2D 2.5, CCF2D 3.0, CCF2D 4.0, CCFJD 0.3, CCFJD 0.5, CCFJD 0.7, CCFJD 1.0, CCFJD 1.5, CCFJD 2.5, CCFJD 3.0, CCFJD 4.0
Extra Information Contact insert without contacts
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Diameter Male Contact 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 16 A
Nominal Rated Voltage 400 V
Over Voltage Category III
Rated Surge Voltage 6 kV
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CR CPQ*
Plain coding pin for CDC, CQ,CQE,CCE,CMCE and MIXO 16A inserts
