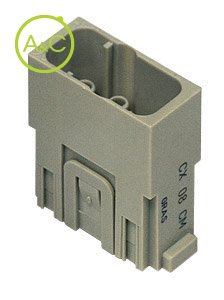

Modular units 8P, crimp connections

  • Male inserts for male contacts
Télécharger la fiche produit
  • General
Article Number CX 08 CM
Pollution Degree 3
Number Of Poles 8
Connection Type Crimp connection
Contact Type Male
Required Crimp Contacts CCMA 0.3, CCMA 0.5, CCMA 0.7, CCMA 1.0, CCMA 1.5, CCMA 2.5, CCMA 3.0, CCMA 4.0, CCMD 0.3, CCMD 0.5, CCMD 0.7, CCMD 1.0, CCMD 1.5, CCMD 2.5, CCMD 3.0, CCMD 4.0, CC 0.5 AN, CC 0.7 AN, CC 1.0 AN, CC 1.5 AN, CC 2.5 AN, CCMC 0.3, CCMC 0.5, CCMF 0.3, CCMF 0.5, CCM2D 0.3, CCM2D 0.5, CCM2D 0.7, CCM2D 1.0, CCM2D 1.5, CCM2D 2.5, CCM2D 3.0, CCM2D 4.0, CCMJD 0.3, CCMJD 0.5, CCMJD 0.7, CCMJD 1.0, CCMJD 1.5, CCMJD 2.5, CCMJD 3.0, CCMJD 4.0
Extra Information Contact insert without contacts
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Diameter Male Contact 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 16 A
Nominal Rated Voltage 400 V
Over Voltage Category III
Rated Surge Voltage 6 kV
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CR CPQ*
Plain coding pin for CDC, CQ,CQE,CCE,CMCE and MIXO 16A inserts
