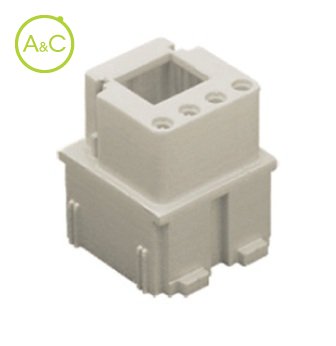

Housing for RJ45 connectors

  • Plug inserts for RJ45 male connector and for 4 10A male contacts
Télécharger la fiche produit
  • General
Article Number CX 01 JM
Pollution Degree 3
Number Of Poles 4
Connection Type Crimp connection
Contact Type Male
Required Crimp Contacts CDMA 0.3, CDMA 0.5, CDMA 0.7, CDMA 1.0, CDMA 1.5, CDMA 2.5, CDMD 0.3, CDMD 0.5, CDMD 0.7, CDMD 1.0, CDMD 1.5, CDMD 2.5, CDM2D 0.3, CDM2D 0.5, CDM2D 0.7, CDM2D 1.0, CDM2D 1.5, CDM2D 2.5, CDMJD 0.3, CDMJD 0.5, CDMJD 0.7, CDMJD 1.0, CDMJD 1.5, CDMJD 2.5
Extra Information Contact insert without contacts
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 120 °C
Diameter Male Contact 1.6 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 10 A
Nominal Rated Voltage 250 V
Over Voltage Category III
Rated Surge Voltage 4 kV
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
CX 4E JM
RJ45 male connector, 4 data contacts cat. 5e profiNET
CX 8 JM
RJ45 male connector with 8 data contacts
CX 6/2 JM
RJ45 male connector with 6 data contacts & 2 power contacts
