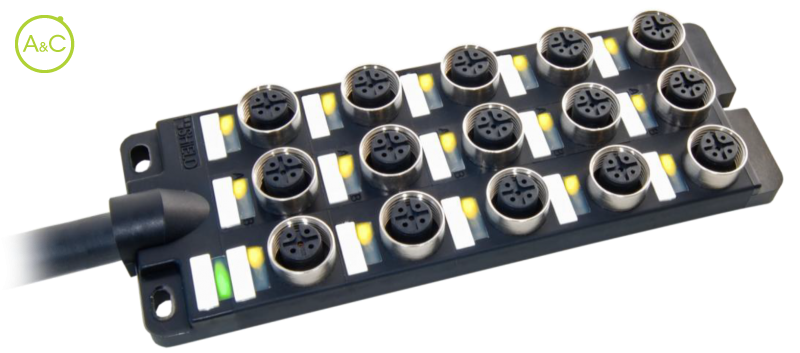

High density, from 6 to 15 sockets, 1 signal each socket

  • Without LED
Télécharger la fiche produit

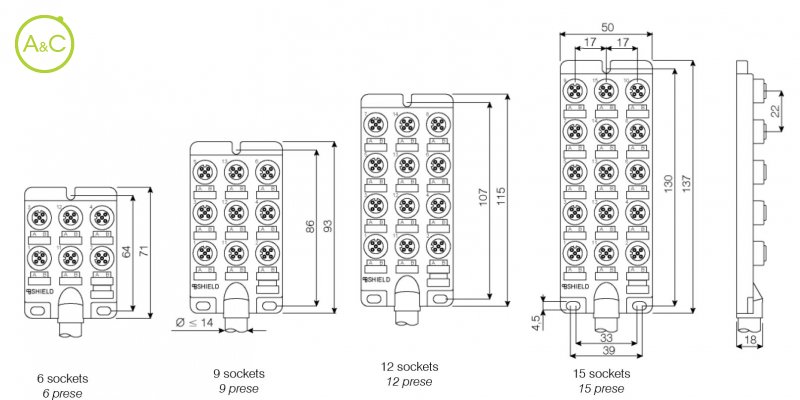

Socket Quantity

  • 6
  • 9
  • 12
  • 15
Article Number SK302N7 00130 837 5000
Number Of Contacts 5
Protection Degree IP65*
Upper Temperature +80 °C
Lower Temperature -25 °C
Housing Material TPU
Circuits Without LED
Housing Oil Resistance Very good
Contact Material Nickel & golden plated CuZn
Locking Nut Material Brass nickel plated
Voltage With Pollution Degree 2 Vdc ** 1 to 135 Max. power 200 W
Voltage With Pollution Degree 3 Vdc ** 1 to 60 Max. power 200 W
Voltage With Pollution Degree 2 Vac ** 1 to 135 Max. power 200 W
Voltage With Pollution Degree 3 Vac ** 1 to 60 Max. power 200 W
Max. Currrent 8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type Cable
Coding A
Connected Terminals 1= V+, 3= V-, 4= A signal, 5= ground
Remark* The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark** The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution
Les propriétés diffèrent selon les variantes et sous-variantes
