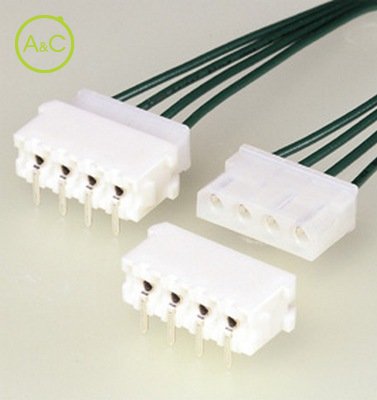

  • LC-L CONNECTOR
Télécharger la fiche produit

Applicable Wire

  • AWG 20 to 18
  • AWG 26 to 22
Article Number SLC-001T-P2.0
Upper Temperature +90 °C
Lower Temperature -25 °C
General Description 5.08mm Pitch Disconnectable Crimp Style
Applicable Wire Size 0.13 to 0.33 (AWG #26 to #22) mm²
Connection Type Printed Circuit Board Connectors
Pitch / Style 5.08 mm
Rated Current (ac/dc) 5 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

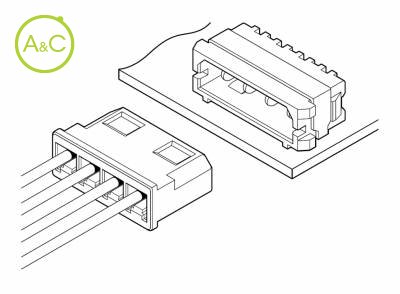

The LC connector is for the secondary power circuit used in the office automation equipment, such as the 3.5" HDD and MO, including the DVD. This low-profile crimp type connector is designed to meet further miniaturization of the equipment. The plug housing can also be mated with our LC connector (top and side entry types) and the power connection part of the LK connector. Space-saving The miniaturization (improved from 20.5mm (.807") to 13.5mm (.531") height) realizes radical space saving after mating and consequently will provide more space for wiring. Lower insertion force Insertion and withdrawal force are reduced by 40 to 50% compared to the existing type. Double-crimping contact For an internal branching or jumper connection, a double-crimping type contact is adopted. RoHS Compliant
